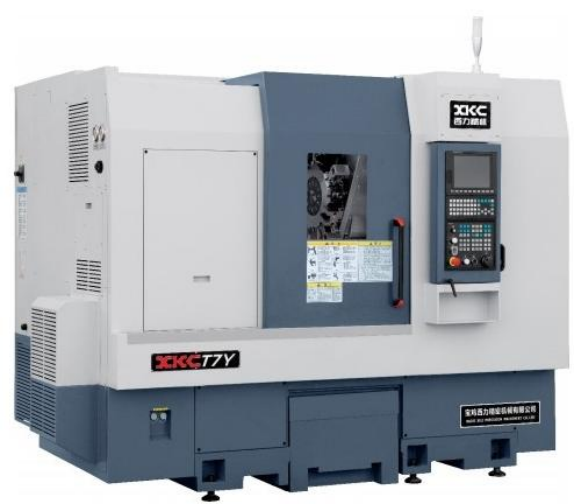

T7Y TURNING AND MILLING CENTER


T7Y

TURNING AND MILLING CENTER

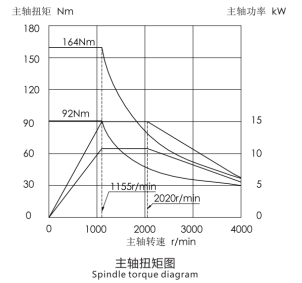

Spindle:Large Through-Hole,High Precision, High Speed,High Stability

This machine adopts the form of a mechanical spindle.After precise dynamic balance correction,it has good rotational accuracy and stability,and strong vibration resistance.The spindleadopts high-speedangular contact ball bearing and cylindrical roller bearing structure,which has good rigidity and a speed of up to 4500r/min.

image.png  image.png

Machine Host:High Rigidity,High Anti Vibration Structure

T7Y CNC lathe adopts an integral 30°inclined bed structure,and adopts high-quality cast iron for multiple aging times to ensure the anti-deformation and anti-vibration ability of the basic parts;The large span design of the Z-axis guide rail improves the anti-deflection ability of the saddle;The integrated design of the saddle and theslide plate with the screw nut seat reduces the connection links and further enhances the force and vibration resistance of the displaced parts.This series of targeted design makes the machine have good vibration resistance,accuracy and long-term stability that far exceed the same level of models on the market.

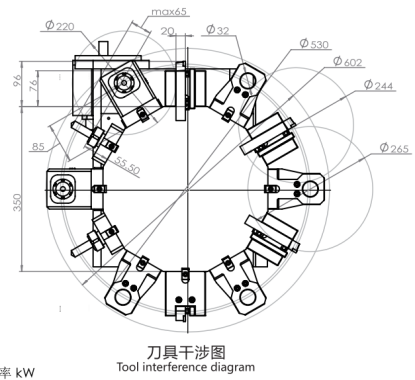

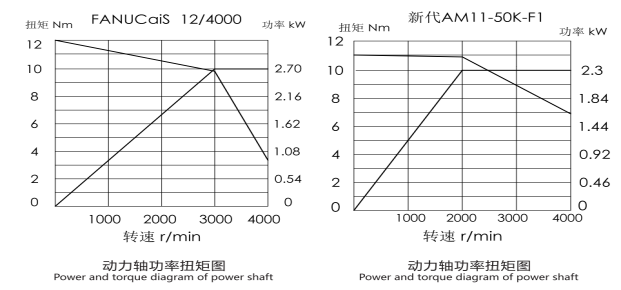

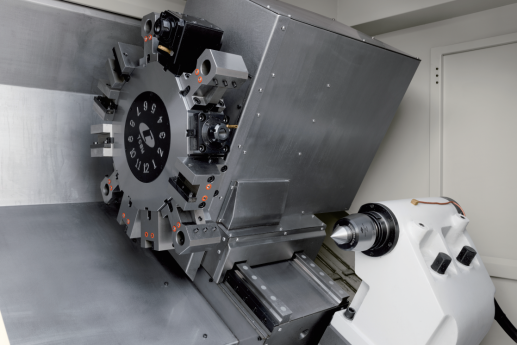

Tools:Quick Tool Change,Precise Positioning

T7Y miling center adopts an orthogonal Y-axis (hard rail)withatwelve station power turret, servo indexing,tooth disc positioning,fast tool changing speed,accurate positioning,and meets the processing needs of most parts mlling and drilling in the market.

image.png  image.png

Feed:Accurate Positioning And High-Precision Feeding

The X-axis and Z-axis guide rails are made of high-precision linear roller-shaped rolling guides,and the Y-axis is in the form of hard rails,which has good vibration resistance and strong bearing capacity.The three-axis feed shaft adopts high-rigidity ball screws,which provide extremely high screw rigidity while ensuringthe feed accuracy.

image.png image.png image.png

MACHINE SPECIFICATION PARAMETERS

項目ITEM

T7Y標配新代(選配發那科)

    Standard SYNTEC (Optional FANUC)



加工能力

Capacity

床身上最大的回轉直徑 Max. swing diaover bed

φ650mm

過床鞍最大回轉直徑 Swing over cross  slide

φ350mm

最大的車削直徑 Max. turning diameter

φ350mm

最大的車削長度 Max. turning length

550mm





主軸

Spindle

液壓卡盤尺寸 Hydraulic chuck dimensions

8寸

主軸頭型式(ISO) Spindle nose

A2-6

主軸轉速 Spindle speed

45-4500r/min

主軸通孔直徑 Spindle borediameter

φ62mm

主軸可通過棒料直徑Through hole diameter

卡盤(Chuck):φ51mm

主電機功率(連續/30分鐘)

Spindlemotor (Continuous/30 minutes)

11KW/15kw



刀架

Turret

驅動形式  Driving fom

伺服動力刀塔 Servo powered turret

刀位數 Number of stations

12

刀具尺寸(車削/鏜孔) Tool size (Turning/and boring)

20×20/φ32mm



尾座

Tailstock

尾座形式 Tailstock form

液壓尾座Hydraulic tailstock

套筒直徑 Tailstock dia

φ90mm

頂尖錐度 Center taper

MT No.5

套筒行程 Tailstock quill travel

100mm

尾座體最大行程Maximum stroke of tailstock body

520mm





床鞍

Carriage

傾斜角度 DEG Slant angle

30°

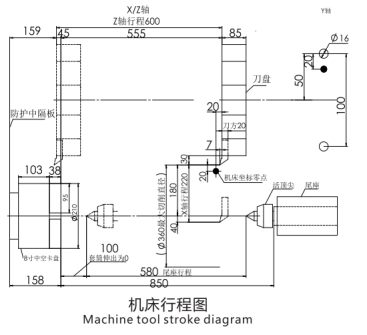

移動距離 X/Y/Z travel

220/100/600mm

進給電機功率X/Y/Z Feed motor power X/Y/Z

標配2.4/1.1/2.4KW(FANUC1.8/1.8/1.8KW)

快速移動速度X/Y/Z Rapid traverse rare X/Y/Z

20/10/24m/min

最大進給速度Max.imun feed speed

8m/min

滾珠絲杠徑X/Y/Z Ball screw diameter X/Y/Z

φ32×10/φ32×10/φ40×12mm

冷卻

Cooling

電機功率/揚程 Motor Power/lift

550W/40KW/M

冷卻箱容積  Cooling tank volume

150L

其它

Others

電源容量Required electric Power

25KVA

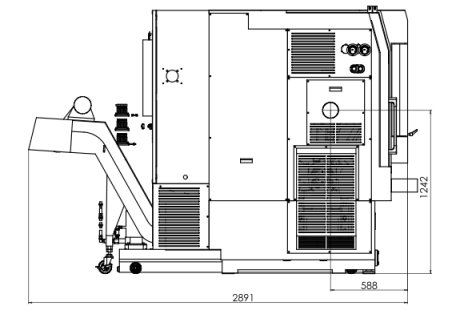

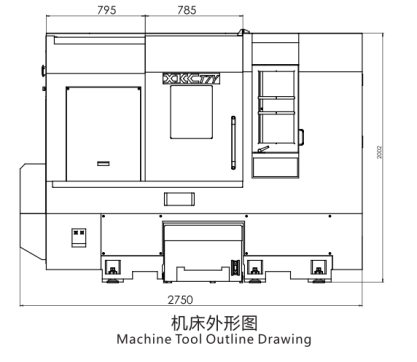

機床尺寸(長×寬×高)Floor Space

2750×2020×2100mm

機床重量 Mass of machine

5000kg about 5000kg
