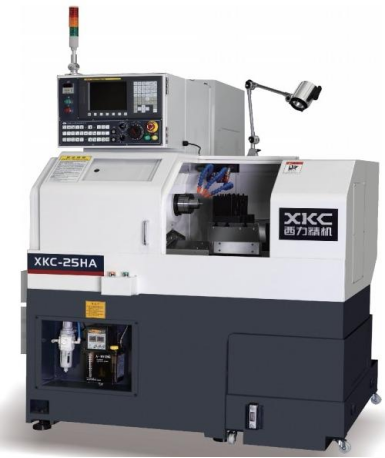

2OH/25H/3OH SUPER-SMALL HIGH PRECISION CNC LATHES


2OH/25H/3OH

SUPER-SMALL  HIGH PRECISION  CNC  LATHES

High Accuracy Symmetry Spindle:

The lathesuing thestructure of symmetry spindle box and Japan NSK super precision Angular Contact ball bearing, and ensures high rigidity and lasting accuracy, spindle run out is less than 2μm.

Unloading Type Clamping Mechanism:

The double stage clamping cylinder unloading assembly gets  the patent, to extend the life of clamping mechanism. Max. speed of spindle is 6000 rev/min, can be equipped to fulfil fast and efficient automation production.

High Rigidity Bed:

Design of machine Bed goesthrough an analysis of thermal deformation, high quality meehanite cast iron integrated bed; improve the rigidity of the lathe.

Accurate Feeding:

Each feeding axis is driven by servo motors through Japan NSK、THK high precisionball screws. Machining accuracy is ensured and longtime accuracy is remained. Repeatabilityis less than ±1um.

Comb Type Tool Rest:

The unique design of comb typetool rest gives minimum repeatability error during tool change. The widen tool holder plate and chute type tool, extend the range of tool installation.

Guide way Construction:

The latheusing Japan NSK、THK high precision linear ways, enhanced the whole rigid. The linear of feed spindle using full-seal protection, improve the life of the linear.

Electric Cabinet and Cutting Box:

The design of outlay separateness powerful electric cabinet, easy tomaintain, and more safety. Side pull type cool case and chip box on the right side, easy to put in the small space.

項目ITEM

20H/25H/30H



加工能力

Capacity

最大回轉直徑Max swing diameter

φ310mm

床鞍上回轉直徑Swing over cross slide

Φ160mm

最大加工直徑Max. turning diameter

φ130mm

最大加工長度Max. turning length

100mm





主軸

Spindle

回轉速度Spindle speed

Max.6000r/min



主軸可通棒料直徑Through hole diameter

20H/HA/HC    中20mm

25H/HA/HC    φ25mm

30H/HA/HC    φ30mm

主軸通孔直徑Spindle borediameter

φ35mm

回轉速度變換Number of spindle speed ranges

無級Stepless

快移速度

Rapid speed

X軸快移速度 X-axis rapid traverse

20m/min

Z軸快移速度 Z-axis rapid traverse

20m/min

移動量

Travelof tool slide

X軸移動量 X-axis travel

240mm

Z軸移動量 Z-axis travel

180mm

電機

Motor

主軸電機 H  Spindle drive motor HA/HC

3.7KW(CTB) 3.7/5.5KW

進給電機 Feed motor

0.75KW(FANUC) 1KW(SYNTEC)

其它

Others

總電氣容量Required electric power

7 kVA

機床尺寸(長×寬×高)Floor Space

1527×1107×1661mm

機床重量Mass of machine

      約1500KG   About 1500KG
